Iridium Certus™ 9704 Development Kit

About

The Iridium Certus 9704 Development Kit is an end-to-end evaluation tool for Iridium Certus 9704 module, dedicated hardware for IridiumMessaging Transport® (IMT®). Simple yet versatile, the kit bundles hardware, software, and connectivity components to create a streamlined discovery experience suited to tech-savvy and novice users alike.

Each Iridium Certus 9704 Integrator Development Kit includes:

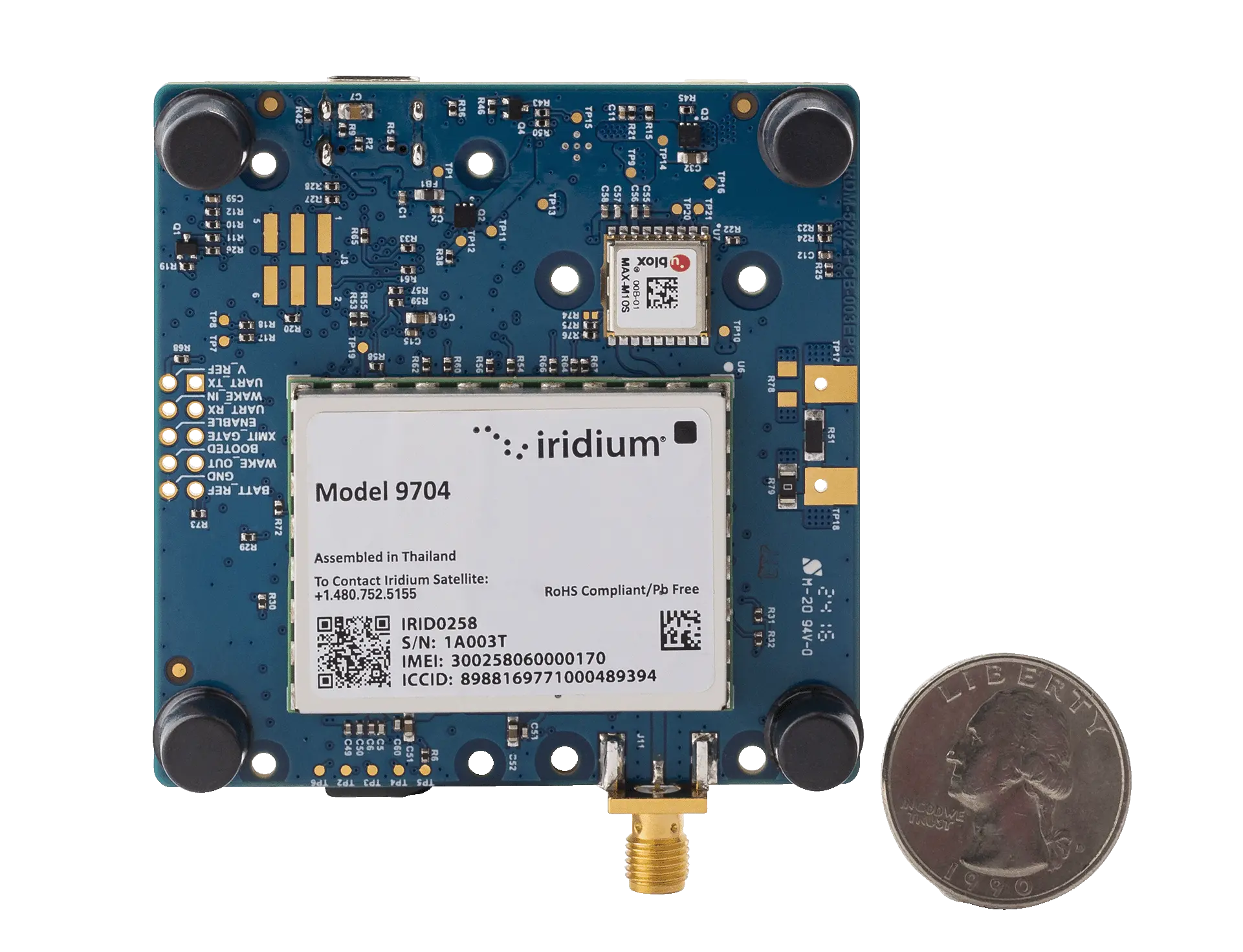

Launch Pad Developer Board
USB-C Cable
3,000 mAh Lithium-Ion Battery
Helical Iridium Antenna
SMA Right-Angle Adapter
MicroSD Card

Details

Core Components:

No items found.

Accessories:

CPU:

Channels:

Memory:

Connectivity:

Satellite

Programming Language:

Supported Blynk Tech:

No items found.

Applications:

Construction

Oil & Gas

Agriculture

Asset Tracking

Cold Chain Logistics

Logistics and Supply Chain Management

Smart Cities

Waste Management

Mining

Maritime

Industrial IoT

Mechanical:

Dimensions: 31.5 mm X 42.0 mm x 3.8 mm (L x W x H)
Weight: 12 g
PCB connection: Standard SMT via Land Grid Array Dx

Power:

Recomm. normal operating voltage:

V_BAT_MAIN (Min/Typ/Max): 3.5 V / 3.7 V / 4.5 V
V_BAT_PA (Min/Typ/Max): 3.5 V / 3.7 V / 4.5 V
V_IO (Min/Max): 1.8 V / 3.3 V

Max. normal operating current:

V_BAT_MAIN (Max): 1000 mA
V_BAT_PA (Max): 5A
V_IO (Max): 250 mA

Average power for idle (over several seconds):

V_BAT_MAIN (Typ): 40 mW
V_BAT_PA (Typ): 0 mW

Average power for IMT (over time):

V_BAT_MAIN (Typ): 400 mW
V_BAT_PA (Typ): 1000 mW

RF Interfaces:

Antenna connection (XCVR_RF): Ceramic patch or helical
Frequency range: 1616-1626.5 MHz
Duplexing method: TDD
Input/Output impedance: 50 Ohm
Multiplexing method: TDMA / FDMA
GNSS Passthrough (GNSS_RF_OUT):

GNSS bands: 1559-1610 MHz
GNSS passthrough gain (Min/Typ/Max): 4 dB / 7 dB / 10 dB
Output impedance: 50 Ohm

Connectivity:

Network type: Low-Earth Orbit, L-band
Satellite service: Iridium Messaging Transport
Service type: Connectionless, store-and-forward
Max. message size: 100 kB

Environmental:

Operating temperature: -40° to +85° C (incl. self heating)
Storage temperature: -40° to +125° C
MSL: Level 3

Regulatory:

Certifications: FCC, EU/CE, Canada (IC), UK (UKCA), Australia/NZ
